TRIPODS

CYG-54

CYG54CSRDLS

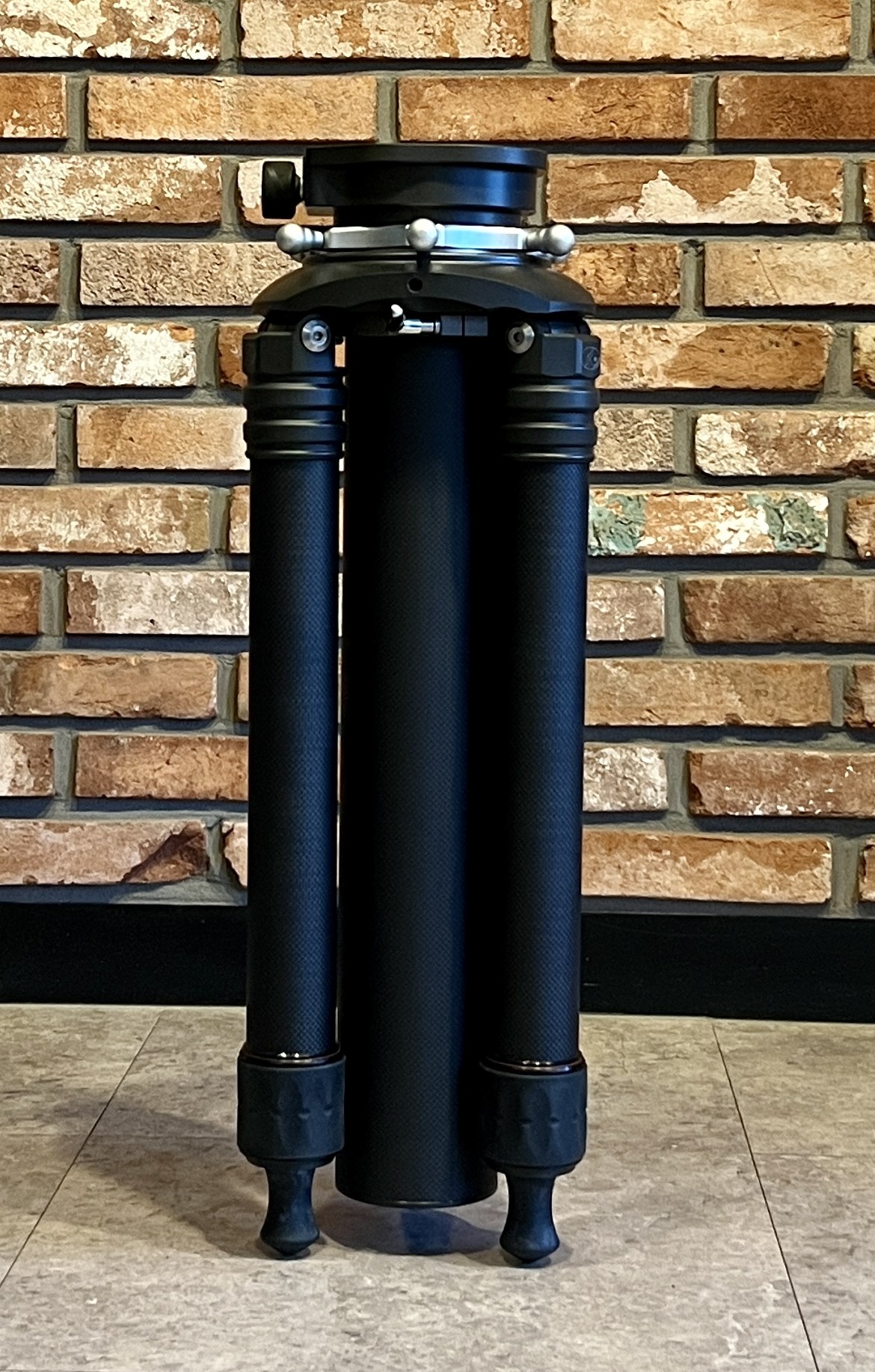

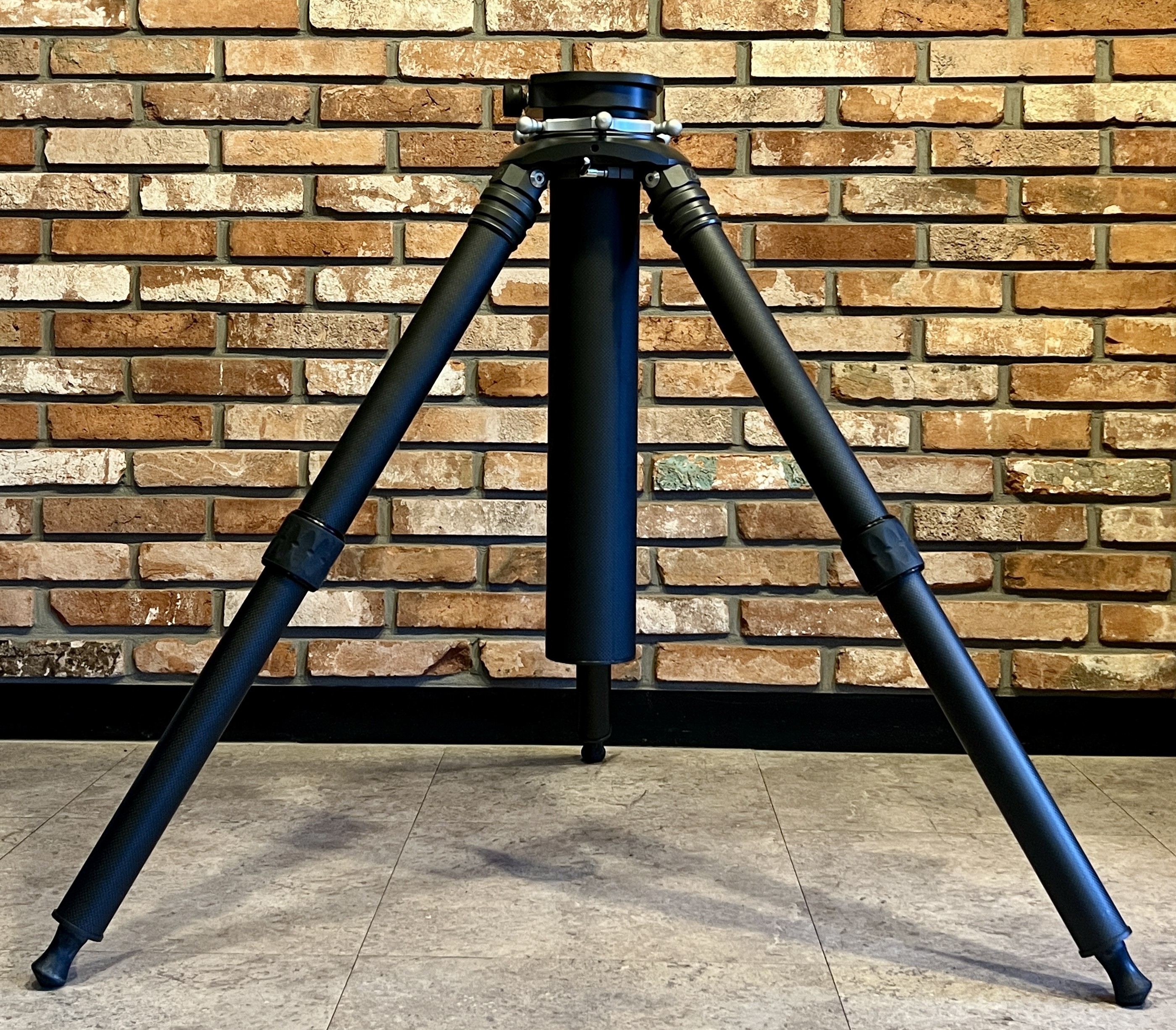

The CYG54CSRDLS features a sliding carbon-fiber half-pier with a 100 mm diameter and a 5 mm wall thickness. Compared with an aluminum design, it offers lower weight, greater strength, and improved vibration damping. Its height can be adjusted using a dual-locking system consisting of an upper captain wheel and a lower clamp, enhancing support strength and vibration suppression after adjustment.

Price

USA 3,000＄ (Incl. shipping, excl. TAX)

Spec

CYG54CSRDLS Specifications

Item	Specification
Model	CYG54CSRDLS
Folded Length	630 mm
Working Height	From 560 mm; maximum height customized to order
Weight	7.5 kg
Load Capacity	225 kg
Leg Diameter	54 mm
Mounting Interface	Premium RDL150
Compatible Mounts	RST135, RST300, AM5, and others
Half-Pier Design	Sliding carbon-fiber half-pier
Half-Pier Diameter	100 mm
Half-Pier Wall Thickness	5 mm
Height Locking System	Dual locking with an upper captain wheel and a lower clamp
Retail Price	USD 3,000

Key Features

The sliding carbon-fiber half-pier offers lower weight, greater strength, and improved vibration damping compared with an aluminum design. Its dual-locking system secures the half-pier at the desired height, enhancing rigidity and vibration suppression.
