Premium RDL120 Carbon Half Pier

The Premium RDL120 Carbon Half Pier combines a lightweight carbon-fiber structure with versatile mounting compatibility. With a height of 300 mm and a weight of only 1,340 g, it provides additional clearance while keeping the overall setup light and portable.

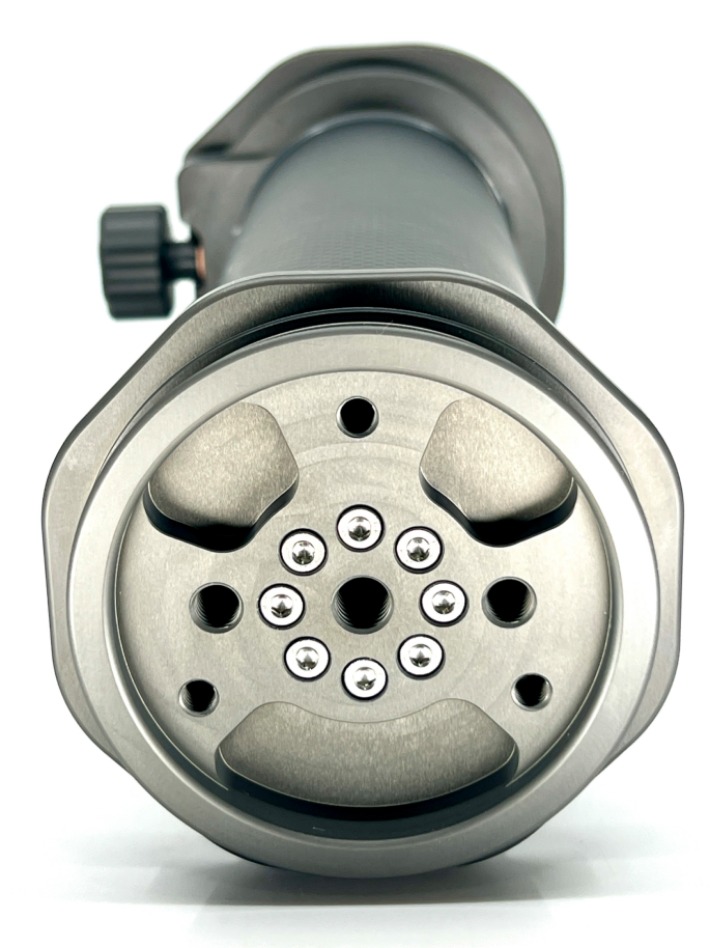

It can be installed on tripods equipped with a 3/8-inch mounting thread. The mounting interface also features two M8 tapped holes on a 45 mm pitch circle diameter (PCD) and three M6 tapped holes on a 60 mm PCD, allowing flexible integration with compatible equipment.

The Premium RDL120 Carbon Half Pier is particularly well suited to the SUPERMOUNT CYG42 Series, offering a clean, balanced, and highly functional setup.

CFRP–Aluminum Hybrid Construction

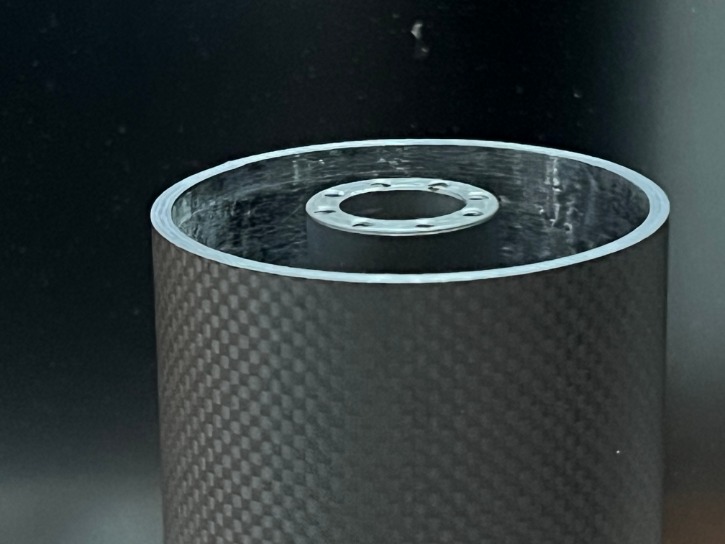

The outer column is made from CFRP (Carbon Fiber Reinforced Polymer), featuring an 80 mm outside diameter and a 3 mm wall thickness. An additional aluminum core is integrated inside the CFRP tube to significantly enhance structural rigidity and reinforce the connection between components.

This hybrid CFRP–aluminum construction combines the lightweight benefits of carbon fiber with the strength and secure joint performance of aluminum, providing excellent stability and durability.
